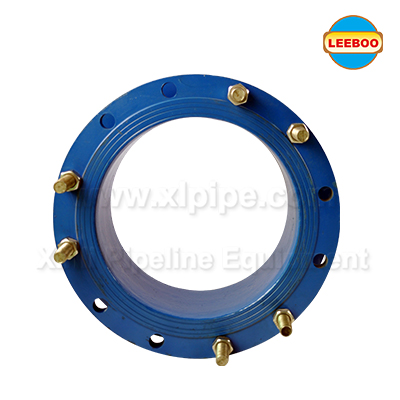

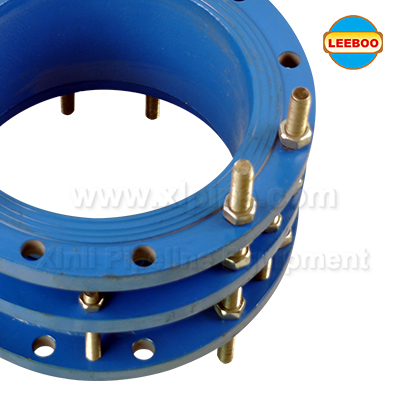

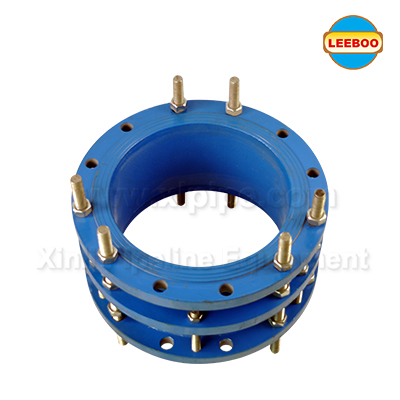

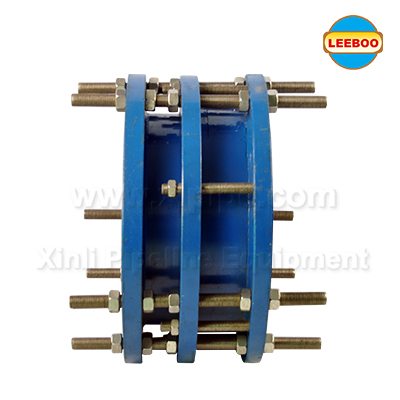

Dismantling Joints Seller is designed to be the final closing piece in the pipe network,to ease the assembling and disassembling for later maintenance of a pump or valve.A standard adjusting range of 50mm on length and a small lateral and angular misalignment can be accommodated.This adjustability of the dismantling joint facilitates for easy removal of pumps and valves in circumstances of inspection,maintenance or replacement.

Dismantling Joints Seller is composed of body,sealingwasher,gland,short slides,this product is applicable for the pipeline which joints with flange on the both sides.Adjust the installation length to the flange on the both sides when installing, screw the bolts firmly one by one to make it as a whole with somewhat displacement. It is convenient to adjust on the spot when installs and maintains it later. This product can delivery axial power to the whole pipe when it is working.

Note:

1. The effectiveness of the Dismantling Joints Seller is achieved by arranging and installing them correctly .

2. The Expansion Joint must be set as close as possible to the soured of vibration to exclude the oscillation equipment .

3. An apogee installation of absorbers where the oscillation amplitude is acting laterally will help to the axis of vibrate direction at right angles.
