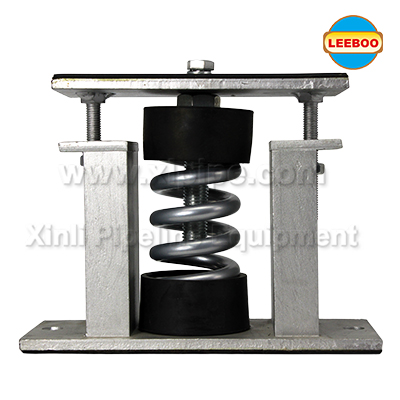

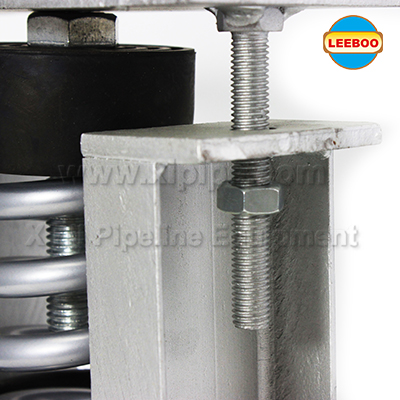

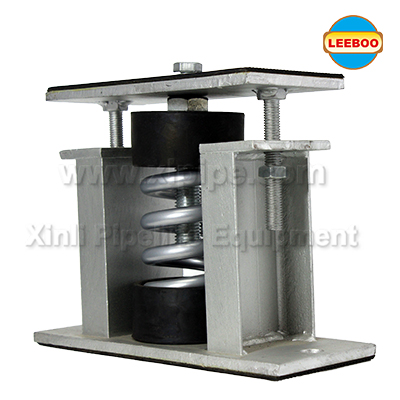

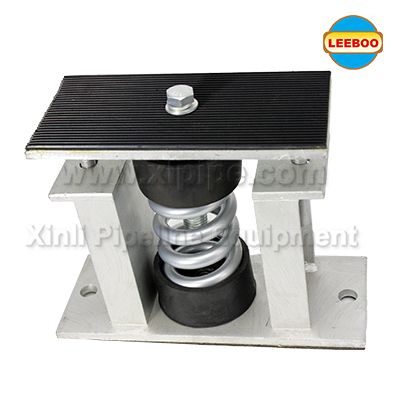

JA Spring Vibration Isolator

[Name]: Spring Shock Absorber
[PN]: 0.6-2.5Mpa
[Certification]: ISO9001:2008
[Specification]: As your request
[Function]: Absorbing shock, movement

Live Chat

Air Suspension is a type of automotive suspension that uses air springs instead of conventional steel springs. Computer-operated vents on the air springs, suspension sensors, and an onboard air compressor allow the system to maintain ride height and vary the suspension's ride characteristics.

An air spring is a rubber and fabric bladder that holds air pressure to support a load and isolate passengers and cargo from the shock of motion caused by road irregularities. As the air pressure increases, the air spring can support more load while the spring rate increases. The larger the air spring, the greater the maximum load it can support.

No matter the application, all shock absorbers fit into one of three broadly defined types conventional telescopic shock absorbers, struts or spring seat shocks.

1. Ideal axle height

The equipment can be kept on its ideal axle height independent of its variable load.

2. Improve driving dynamics, road handling and comfort

Driving dynamics, road handling and comfort are improved. The suspension is soft and comfortable during slow driving and becomes noticeably stiffer during faster driving. The suspension responds to dynamic load as it reacts to live load.

3. Better sound isolation and lower resonance frequency

Better sound isolation of airbag and lower resonance frequency, which leads to a smoother and more comfortable ride.

4. Absorber energy

Higher ability to absorb energy which means better and safer handling in extreme driving conditions.

Type	Load(Kg)	Vertical stiffness(Kg/cm)	Size(mm)
Type	Load(Kg)	Vertical stiffness(Kg/cm)	L	L1	B	H	D	M
ZTF-600	500～700	140	300	271	160	160	13	12
ZTF-800	700～900	190	300	271	160	160	13	16
ZTF-1000	900～1100	210	300	271	160	160	13	16
ZTF-1200	1100～1300	270	300	271	160	160	13	16
ZTF-1400	1300～1500	340	300	271	160	160	13	16
ZTF-1600	1500～1800	450	300	271	160	160	13	16
ZTF-2000	1800～2100	550	300	271	160	160	13	16
ZTF-2400	2200～2600	600	300	271	160	160	13	16
ZTF-2800	2600～3000	730	300	271	160	160	13	16
ZTF-3200	3000～3400	880	300	271	160	160	13	16
ZTF-3600	3400～3800	950	300	271	160	160	13	16
ZTF-4000	3800～4200	1060	300	271	160	160	13	16
ZTF-5000	4500～5500	1130	500	451	250	160	13	18
ZTF-6000	5500～6500	1200	500	451	250	160	13	18
ZTF-7000	6500～7500	1350	500	451	250	160	13	18
ZTF-8000	7500～8500	1500	500	451	250	160	13	18
