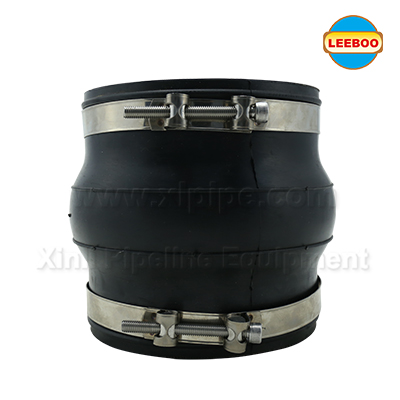

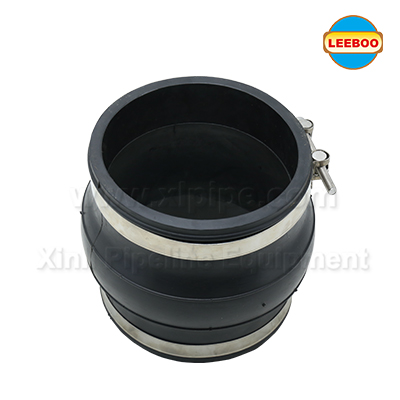

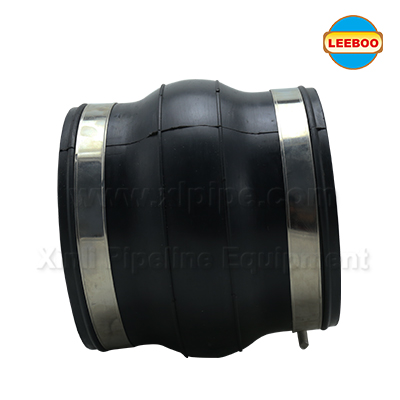

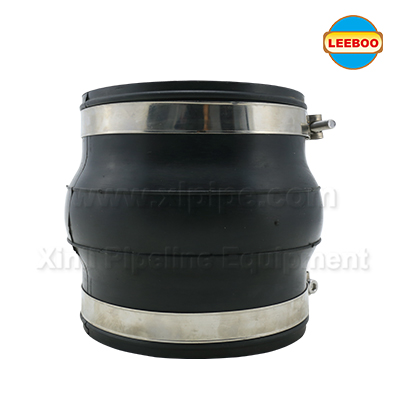

Clamp Flexible Rubber Joint

  • [Name]: Clamp Flexible Rubber Joint
  • [PN]: 0.6~2.5Mpa
  • [Medium]: Air, water, seawater, oil, slurry, weak acid, alkali, etc.
  • [Material]: NR, NBR, CR, EPDM, PTFE etc.
  • [Certification]: ISO9001：2008
  • [Products]: Clamp Flexible Joint, Flexible Rubber Joint
Live Chat
Clamp Flexible Joint is also called  Flexible Rubber Joint, flexible joint, rubber coupling, flexible rubber joint, rubber soft connection. Clamp Flexible Rubber Joint is flexible coupling of metal pipe, composed by inner layer,Nylon cord fabric enhanced, outer layer composite rubber ball and metal flange. Working pressure is higher than ordinary flexible rubber joint. The product has the characteristics of high pressure resistance, good flexibility, big displacement, balance pipe deviation, absorb vibration, reduce noise, convenient for installation.

Clamp flexible rubber joint is composed of inner layer, polyamide fiber cord fabric, outer layer rubber and lapped joint flange, it have many advantage such as high temperature and pressure resistance, high-flexibility reduce structural noise strong shock absorption and easy installation, extensively used in the water supply, drainage cyclic water air conditioning paper making petroleum chemical industry, pump and duct fan pipeline system.

The expansion joint pipe manufacture is manufactured through welding or metal casting, and the loosing part is sealed by echelon ring rubber. Operated by gland and bolt and based on the principle of rubber’s elastic deformation under pressure, the seal ring will be deformed and static seal will be done between joint body and expansion pipe wall.

1.Clamp Flexible Rubber Joint can greatly reduce pipeline system vibration and noise, can solve the problem of joint displacement axial expansion, etc.

2.According to different materials, flexible rubber joint can be made into many kinds: acid resistance, alkali resistance, corrosive

resistance, oil resistance, heat resistance, adapt to many mediums and different environment.

3.Material is polar rubber, good sealing, light weight, easy installation, long service life, avoid contacting with sharp metal device.

4.If use overhead, can match with elastic support, when installation, bolt with diagonal method to tighten up.

5. If pipeline pressure is high, use bolt connect the flange both ends.

6.Flange standard: ANSI, JIS, BS, DIN, GB, ect.

Item/ Model JGD-1 JGD-2 JGD-3
Working pressure Mpa(kgf/cm²) 1．0(10) 1．6 (16) 2．5 (25)
Explosive pressure Mpa (kgf/cm²) 2．0 (20) 3．0 (30) 4．5 (45)
Vacuum Kpa (mm/Hg) 53．3 (400) 86．7 (650) 100 (750)
Applicable temperature ℃ -15℃~+115℃ special up to -30℃~+250℃
Applicable medium compressed air, water, sea water, hot water, oil, acid, etc



Technical parameter:

Nominal Diameter
Length(mm)
Flange thickness
No. of Bolts
Axial displacement(mm)
Horizontal
displacement
Deflection angle
mm Inch Extension Compression
32 1.25 95 16 4 6 9 9 15
40 1.5 95 18 4 6 10 9 15
50 2 105 18 4 7 10 10 15
65 2.5 115 20 4 7 13 11 15
80 3 135 20 4 8 15 12 15
100 4 150 22 8 10 19 13 15
125 5 165 24 8 12 19 13 15
150 6 180 24 8 12 20 14 15
200 8 210 24 8 16 25 22 15
250 10 230 26 12 16 25 22 15
