Connections of Single Ball Rubber Joint



1. Threaded rubber connector installation

   Before installing the two ends of the pipe in the horizontal plane flat need to connect, installation first rubber joint screw thread in which a tube and tube at the other end of the screw in, and always maintain in the horizontal plane, preventing the installation in the process of stress and tearing the rubber ball, then by hand or wrench to tighten the screw, finally to threaded joint rubber and at two ends of the pipe body is fixed on the not easy to stretch or distorted objects.

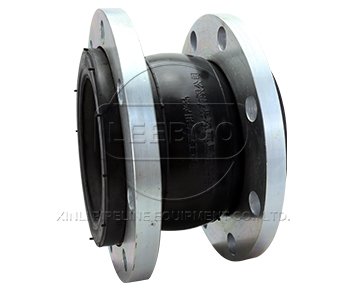

2. Flange connection rubber joint installation

   Before installing flanged rubber flexible connector needs to be connected with the two ends of the pipe in the horizontal plane flat, install first flat firmly fixed to one end of the pipe, and then let the rubber joint flange rotation so that the flange holes surrounded by alignment, tighten the nut, then make other end flanges and rubber joint flange horizontal alignment, rotating rubber joint flange, the flange around the mouth of the relative, screw on the nut, keep the horizontal direction of the three closely connected.

3. Clamp connection rubber joint installation Card hoop type rubber joints, the hoops are adopted to replace flanges and bolts, installation finished by the clamp fixing the rubber joint and the pipeline. when disassembling just need to release the clamp.
