Installation Considerations for CS Thermal Expansion Joint



CS thermal expansion joint appears heat bilges cold shrink phenomenon due to temperature changes in the pipe, and pipeline occurs thermal expansion deformation, fracture due to shrinkage. In order to avoid the pipeline damage duo to the phenomenon, generally compensator is joined in section of the pipe, which is called CS thermal expansion joint.
Install Caution
1. Before installation, loosen pressure plate bolt, stretch the expansion joint to install length, and then tighten bolts with diagonal method. Don't do partial pressure.
2. This expansion joint should be installed in a straight run of pipe between two fixed brackets, in order to ensure the expansion joint normal scale and prevent pulled off, and guide bracket and gears should be equipped.

Above is the detailed instruction for CS thermal expansion joint installation. CS thermal expansion joint made by Gongyi Xinli Pipeline Equipment Co., Ltd is of high quality and outstanding performance.

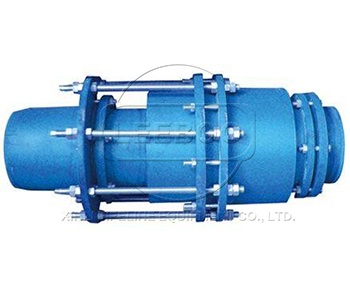

CS thermal expansion joint.jpg
